High-Speed Sleeve Labeling Machine for Efficient and Precise Label Application

Machine Introduction

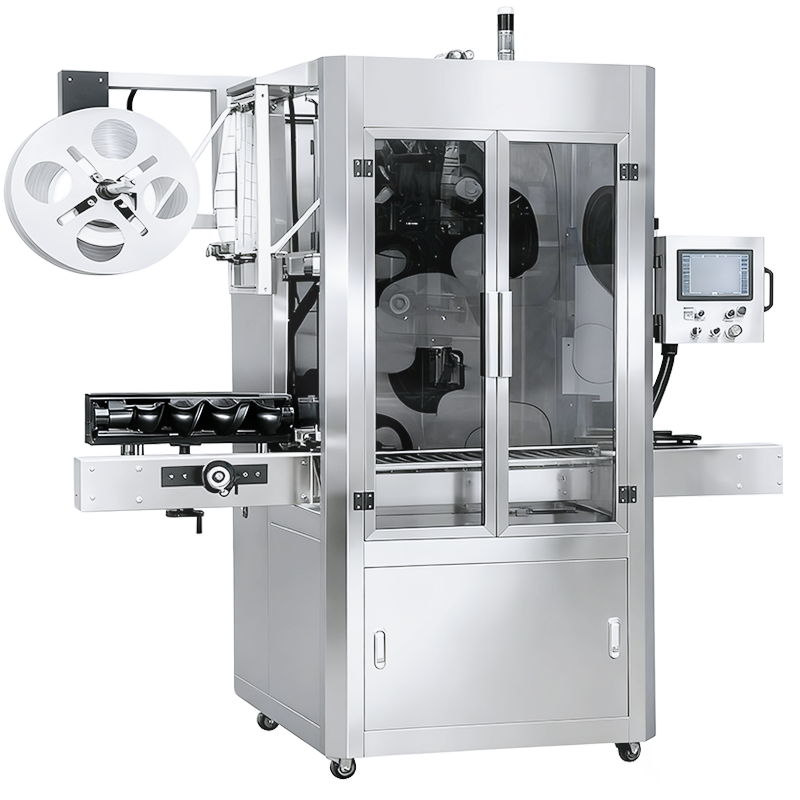

Our High-Speed Sleeve Labeling Machine is designed to provide accurate, efficient, and seamless labeling for various products. With its advanced automation technology, this machine ensures precise label application, reducing production time while maintaining high-quality standards. Ideal for packaging industries, it offers a robust solution for labeling bottles, containers, and other cylindrical products with ease.

Technical Parameters

The Ry-150RTB-R is a high-speed shrink sleeve labeling machine engineered for precise, continuous application of shrink sleeve labels to cylindrical and shaped containers at up to 150 bottles per minute. The machine handles bottle diameters from 28 to 120 mm, label lengths from 30 to 250 mm, and label film thicknesses from 0.03 to 0.13 mm, covering the full range of container sizes used in beverage, pharmaceutical, cosmetic, and consumer product packaging.

The system integrates a PLC control system, servo motor positioning, and frequency converter speed regulation to deliver accurate label placement at full production speed. A single shrink label feeding tray with microcomputer automatic control manages label supply, detection, and positioning, while the servo-driven cutting mechanism ensures clean, precise label cuts at the programmed length for every container.

Technical Specifications

• Model: Ry-150RTB-R
• Capacity: 150 bottles per minute
• Bottle Diameter Range: 28 to 120 mm
• Label Length: 30 to 250 mm
• Label Thickness: 0.03 to 0.13 mm
• Inner Diameter of Label Roll: 5 to 10 inches (adjustable)
• Power Supply: 220V, AC 50Hz, 3 KW
• Overall Dimensions (L x W x H): 2100 x 850 x 2000 mm

Key Features

1. 150 Bottles per Minute Throughput: The machine achieves a sustained production rate of 150 containers per minute through coordinated servo-driven label feeding, high-speed cutting, and synchronized conveyor transport. This throughput supports high-volume production lines in beverage, dairy, and pharmaceutical manufacturing where labeling capacity must match or exceed filling line output.
2. Single Shrink Label Feeding Tray with Microcomputer Control: The label supply system uses a single feeding tray managed by a dedicated microcomputer controller. The system automatically detects label availability, positions the label web for accurate cutting, and maintains consistent feed tension throughout the production run. The automatic detection and positioning system eliminates the misalignment and double-feed errors that can occur with manual label supply management.
3. Fast Label Changeover: The label roll change system is designed for rapid replacement, minimizing line stoppage when label rolls are depleted. The adjustable inner diameter range of 5 to 10 inches accommodates standard label roll cores, providing flexibility in label supplier selection without requiring adapter sleeves or core conversion accessories.
4. Precise Cutting Position: The servo-driven cutting mechanism positions each cut at the exact programmed location on the label web, ensuring that every sleeve applied to a container has consistent length and registration. Accurate cutting prevents the label overlap gaps, exposed areas, and registration shifts that compromise shelf appearance and brand consistency.
5. Industrial-Grade Control Architecture: The Ry-150RTB-R uses the same PLC, positioning module, servo motor, and frequency converter components found in the company's high-speed equipment line. This shared component strategy ensures long-term parts availability, worldwide technical support, and proven reliability under continuous production conditions.
6. User-Friendly Touch Screen Interface: The touch screen HMI provides intuitive access to all machine parameters, including label length, cutting position, feed speed, and container spacing. Operators can adjust settings during production and store configurations for recurring product formats, reducing setup time on repeat runs.
7. Versatile Product Compatibility: The machine accommodates a wide range of container types and shapes, including beverage bottles, cans, tape rolls, cups, jars, and other cylindrical or near-cylindrical products within the specified diameter range. This versatility allows a single machine to serve multiple production lines with different container formats.

Working Principle: Six-Stage Sleeve Labeling Process

The Ry-150RTB-R applies shrink sleeve labels through a continuous six-stage process:

1. Product Conveying: Containers are transported to the labeling station via a conveyor belt. The conveyor speed is synchronized with the labeling mechanism through the frequency converter, ensuring that containers arrive at the labeling position at the correct spacing and timing for accurate label application.
2. Label Supply: The shrink sleeve label roll, mounted on the feeding tray, unwinds and feeds through the internal transport system to the label application point. The microcomputer controller monitors label web tension and feed rate to maintain consistent supply without stretching or slack.
3. Label Separation: The machine uses air blasts, rollers, or a combination of mechanisms to separate each label from the continuous web. The separation system ensures that labels are cleanly removed from the roll without tearing, stretching, or double-feed incidents.
4. Label Positioning and Application: As the separated label reaches the application point, the machine automatically positions the container to ensure accurate label placement. The label is applied to the container surface, typically as a shrink sleeve that wraps around or partially covers the container. The servo positioning system maintains registration accuracy across the full speed range.
5. Sealing and Adhesion: After application, the label is secured to the container surface. For shrink sleeve labels, this stage prepares the label for the downstream shrink tunnel, where heat causes the sleeve to conform tightly to the container shape. For non-shrink applications, the system may use heating or cooling elements to ensure proper adhesion and prevent label shifting during transport.
6. Product Discharge: Labeled containers are discharged onto the output conveyor and proceed to the shrink tunnel (for shrink sleeve applications), inspection station, or downstream packaging equipment such as case packers or palletizers.

Shrink Sleeve Label Applications

Shrink sleeve labeling provides full 360-degree container coverage, enabling premium shelf presentation and maximum brand visibility:

• Beverage bottles: Water, juice, carbonated drinks, energy drinks, tea, and dairy beverages in PET, HDPE, and glass containers from 28 mm neck diameter to 120 mm body diameter.
• Pharmaceutical containers: Medicine bottles, syrup containers, and vitamin jars where full-body labels provide space for regulatory text, dosage instructions, and multilingual information.
• Cosmetic and personal care: Shampoo bottles, body wash containers, skin care jars, and cosmetic tubes where 360-degree graphics enhance premium product positioning.
• Food containers: Sauce bottles, cooking oil containers, snack canisters, and dairy product cups requiring moisture-resistant, tamper-evident full-body labeling.
• Household products: Cleaning solution bottles, detergent containers, and household chemical packaging requiring chemical-resistant label materials and safety information display.
• Specialty containers: Tape rolls, cups, and non-standard cylindrical products within the specified diameter range.

Label Material Compatibility

The machine processes shrink sleeve label films in thicknesses from 0.03 to 0.13 mm, accommodating the materials most commonly used in sleeve labeling:

• PVC shrink film: Economical, high-shrink-rate material for standard beverage and food containers.
• PETG shrink film: Premium material with excellent print quality and controlled shrinkage for high-end cosmetic and beverage packaging.
• OPS shrink film: Low-density, high-shrink material for lightweight containers sensitive to shrink tunnel heat.
• PLA shrink film: Biodegradable material for environmentally conscious product lines and sustainable packaging initiatives.

Integration with Shrink Tunnels

For shrink sleeve applications, the Ry-150RTB-R is typically paired with a downstream shrink tunnel that applies controlled heat to conform the applied sleeve to the container shape. The machine's output conveyor height, speed, and container spacing can be configured to match the shrink tunnel inlet requirements, ensuring smooth container transfer between the two systems. Hangzhou Ruiyi Machinery Technology Co., Ltd provides complete labeling line integration services, including shrink tunnel selection, conveyor layout design, and system commissioning.

Quality Assurance and Compliance

The Ry-150RTB-R is manufactured under the ISO 9001:2015 certified quality management system and carries CE certification for international market compliance. The machine frame uses SUS304 stainless steel construction, and the industrial-grade PLC, servo motor, and frequency converter components are sourced from globally recognized automation manufacturers, ensuring spare parts availability and worldwide technical support.

Hangzhou Ruiyi Machinery Technology Co., Ltd brings over 20 years of packaging machinery engineering experience to every machine produced. The company has supplied labeling equipment to manufacturers across 50-plus countries, with installations operating in facilities regulated by the United States FDA, the European Food Safety Authority, and national food and drug administrations worldwide.

Delivery, Installation, and After-Sales Support

Standard delivery time for a single Ry-150RTB-R unit is 7 to 15 working days. Complete labeling line configurations, including shrink tunnel and conveyor integration, require 20 to 30 working days. Each machine ships with operation manuals, installation video guides, and remote technical support access. On-site installation, operator training, and preventive maintenance visits by qualified service engineers are available based on customer location. Lifetime technical assistance is provided as standard with every purchase.
