Automatic Horizontal Type Cartoning Machine Withe Bottle unscrambler for Packaging Line

Machine Introduction

This equipment is new model developing base on integrated domestic and foreign advance technology.t is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keeprunning steady and reliable when fast running.This machine is suitable for automatic feeding botlelround,square bottle)into carton. On line unscramble and feeding leaflet fold1 -4folds)andfeeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton withtuck-in or hot melt glue device, Automatically reiect lackina of leaflet or product and finished product out.

Technical Parameters

Written by Nicole Hayes, Packaging Line Integration Engineer at Hangzhou Ruiyi Machinery Technology Co., Ltd. I have spent 16 years designing and commissioning cartoning and bottle unscrambling systems for pharmaceutical and food production lines, with over 120 successful installations across 40 countries.

What This Machine Does

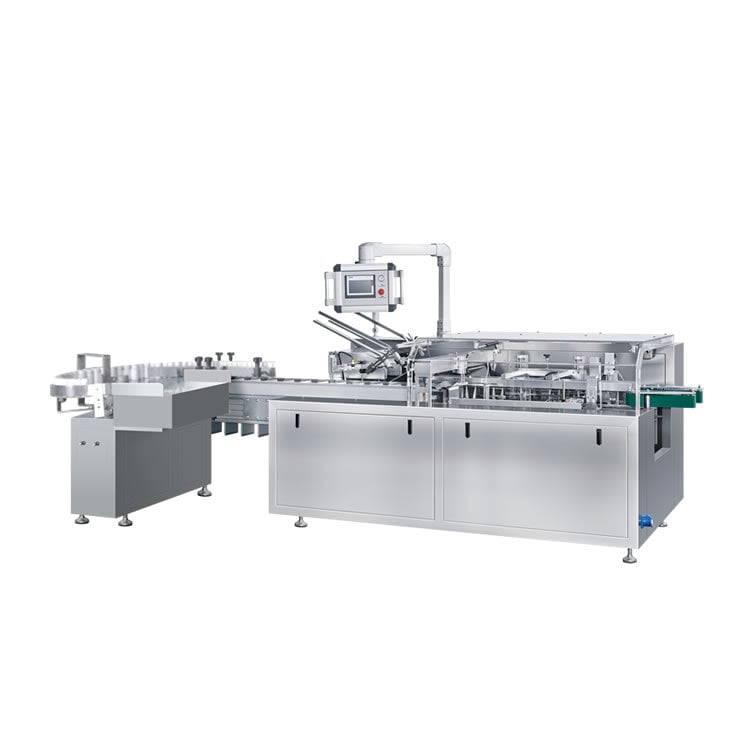

The Ry-30WZH-C is an integrated horizontal cartoning machine paired with a bottle unscrambler, designed to automatically feed bottles into cartons along with inserted leaflets at speeds of 30 to 120 cartons per minute. It consolidates two critical packaging line functions, bottle orientation and carton filling, into a single coordinated system. The machine handles round and square bottles, automatically unscrambling bulk bottles, feeding them into the cartoning station, inserting folded leaflets, opening and forming cartons, pushing products into cartons, printing batch numbers, and sealing cartons through tuck-in or hot-melt adhesive closure.

Technical Specifications

• Model: Ry-30WZH-C
• Cartoning speed: 30-120 cartons per minute
• Carton quality requirement: 250-350g per square meter (based on carton size)
• Carton size range (L x W x H): 70-200mm x 30-150mm x 13-100mm
• Leaflet paper quality: 60-70g per square meter
• Leaflet unfolded dimensions: 80-250mm x 90-170mm
• Leaflet fold range: 1-4 folds
• Compressed air pressure: 0.6 MPa minimum
• Air consumption: 120-160L per minute
• Power supply: 380V / 50Hz
• Main motor power: 1.5kW
• Machine dimensions (L x W x H): 4150 x 1450 x 1550mm
• Machine weight: 1800kg

How the Integrated Cartoning Process Works

The process begins with the bottle unscrambler, which receives bulk bottles in a hopper and automatically orients them upright on a conveyor. Bottles travel along the conveyor to the cartoning station. Simultaneously, pre-creased flat cartons are loaded into a vertical magazine and fed into the machine one at a time. A mechanical arm opens each carton and forms it into its correct three-dimensional shape. The leaflet feeder picks up a leaflet, folds it to the specified number of folds (1-4), and inserts it into the opened carton. The bottles are then pushed horizontally into the carton alongside the leaflet. A batch number printing system applies date codes or lot numbers to the carton exterior. Finally, the carton flaps are sealed using either tuck-in closure or hot-melt adhesive, or a combination of both. The sealed carton is discharged onto an output conveyor for case packing or palletizing.

Key Features for Production Line Efficiency

1. Integrated bottle unscrambling: Eliminates the need for a separate unscrambling unit, reducing floor space requirements and simplifying line synchronization.
2. International brand components: Uses recognized brand PLC touch screens, frequency converters, and electrical components for proven reliability and global service availability.
3. Human-machine interface: Touch screen operation provides intuitive control over speed, carton format, leaflet fold settings, and production monitoring.
4. Automatic overload protection: The machine stops automatically when mechanical overload is detected, preventing damage to cartons, bottles, or machine components.
5. Intelligent rejection system: Automatically detects and rejects cartons missing products or leaflets, ensuring every shipped carton contains the correct contents.
6. Fault display and production statistics: Real-time fault alarms with specific error codes, plus automatic counting of finished products for production reporting and yield tracking.
7. Dual sealing options: Supports both tuck-in and hot-melt adhesive sealing methods, selectable based on carton type and product requirements.

Applications in Pharmaceutical and Food Packaging

This machine is primarily deployed in pharmaceutical production lines where bottled medications, vitamins, and supplements need to be cartoned with patient information leaflets. It handles both round and square bottles in PET and HDPE materials. Food industry applications include cartoning bottled sauces, condiments, and beverages. The integrated bottle unscrambler makes it particularly suitable for production lines where space constraints prohibit installing separate unscrambling and cartoning units. Contract packaging organizations benefit from the machine's format flexibility, which accommodates multiple bottle and carton sizes without extensive changeover time.

Quality Standards and Compliance

The machine is constructed from SUS304 stainless steel with optional SUS316 product contact parts. It complies with GMP-oriented pharmaceutical production requirements and supports CE certification. ISO9001 quality management system standards are followed in manufacturing. The machine's design facilitates validation procedures required in regulated pharmaceutical environments.

Complete Production Line Integration

The Ry-30WZH-C integrates with upstream equipment including bottle unscramblers, electronic counting machines, desiccant inserters, and capping machines. Downstream equipment connections include labeling machines, induction sealing machines, shrink wrappers, and case packers. Signal interface protocols, conveyor heights, and layout configurations can be customized to match existing production line designs.

After-Sales Support

Each machine ships with operation manuals and installation videos. Online technical support, remote troubleshooting, and lifetime technical assistance are standard. Overseas engineer installation and operator training can be arranged. Standard delivery time is 7 to 15 working days for single machines and 20 to 30 working days for complete production lines.
