Ry-270WZB1-V
Machine Introduction

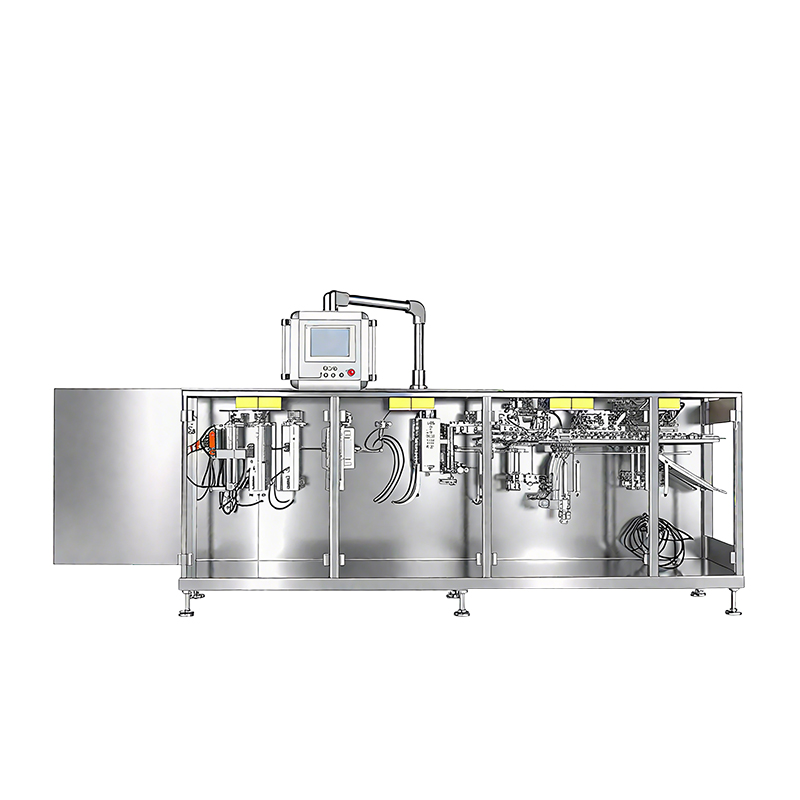

A good choice for customers with insufficient budget. By using Taiwan & Japan made electrical products, the machines achieve good performance while keep the cost at a lower level. These models are making small sachets for small size product doses, They are very versatile machines that can produce individual sachets, and can also make strings with 3 and 4 side seals. The seals can be personalized with several seal patterns.
Technical Parameters
operation |
HFFS |
Horizontal form fill and seal |
||
Technology concept |
Pouch forming |
Form the reel |
||
Pouch transport system |
intermittent |
|||
Construction |
Machine frame |
Stainless steel 304 |
||
parts |
Carbon steel and aluminum alloy |
|||
Parts in contact with product |
Stainless steel 316 |
|||
Reel |
Reel diameter |
400mm |
||
Reel Width |
500mm |
|||
Reel core |
76mm |
|||
dimensions |
Length×width×height |
5600×1100×1600mm |
||
weight |
|
3000Kg |
||
Pouch dimensions |
Length×width×height |
|
Minimum size |
Maximum size |
|
STU-1 |
70×120×40 |
180×270×90 |
|
speed(ppm) |
|
|
Speed max |
Volume max |
|
STU-1 |
60ppm |
1000ml |
|
Consumption |
Electrical |
|
8kw |
|
|
Air consumption |
|
100L/min 0.6Mpa |
|
Electrical Data |
|
|
200-460V/50-60Hz/N+G(According to customer requirements customization) |
|
1. Film Feeding and Forming
The machine uses roll film (packaging film) as raw material.
The roll film is fed into the machine through a film feeding device and a traction system.
The forming unit folds the flat film into a sachet shape, typically creating 3-side or 4-side sealed small bags.
2. Vertical and Horizontal Sealing
Vertical sealing: The edges of the packaging film are sealed together with a heating sealing roller or heat sealing mold, forming a continuous cylindrical film.
Horizontal sealing: A horizontal sealing knife seals the bag and cuts it at a preset location, creating individual sachets. The PLC control system ensures precise positioning, guaranteeing consistent bag sizes.
3. Automatic Weighing and Filling
Depending on the product type, different filling devices are used, such as screw fillers for powders, liquid pumps, cup fillers for granular products, or electronic scales.
Once the sachet reaches the filling station, the system automatically fills the bag with the set weight or volume of product.
4. Automatic Cutting and Product Output
The horizontal sealing unit completes the final sealing and cuts the sachets apart.
The finished sachets are then conveyed via a conveyor belt to the collection or subsequent packaging process.
5. PLC Touch Screen Control
The PLC (Programmable Logic Controller) handles the overall process logic, action coordination, and precise control of the machine.
The Touch Screen (HMI) provides an interface for operator interaction, allowing the setting of parameters (bag length, filling amount, sealing temperature, speed, etc.), monitoring of operation status, fault detection, and adjustments.
1. Fully automated and high-speed operation.
2. Precise control through PLC and touch screen.
3. Suitable for a variety of products and sachet types.
4. Accurate weighing and filling with minimal waste.
5. Reduced labor requirements with high safety standards.
