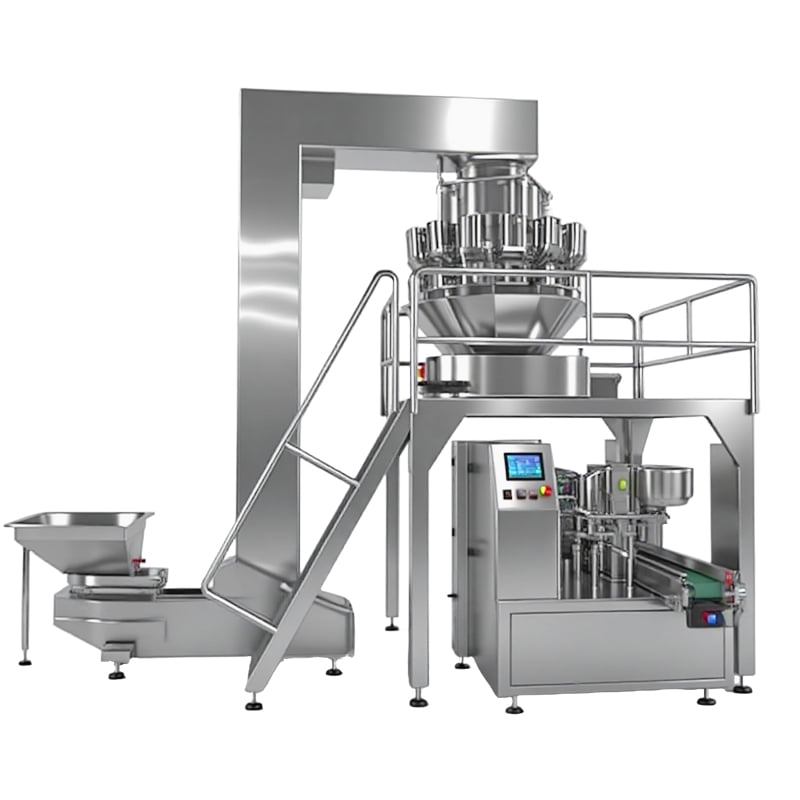

8-station Automatic Premade Bag Granular Packing Machine

Machine Introduction

Suitable for automatic metering packaging of granules and irregular items such as candy, nuts, raisins, peanuts, sunflower seeds, dried fruits, chips, chocolate, tea leaves, biscuits, cat food, and dog food.

Technical Parameters

1. Premade Bag Feeding: The machine uses pre-made bags (usually flat bags or gusseted bags) that are loaded into the machine. These bags are fed automatically into the machine by a bag feeder

2. Bag Opening: The pre-made bag is then opened by a set of mechanical arms or a vacuum system to ensure it is properly aligned and ready for filling.

3. Granular Material Filling: The machine uses a filling system (such as a multihead weigher or auger) to measure the precise amount of granular material (like rice, beans, candy, or pet food) that needs to be filled into the bag. The material is then dispensed into the opened bag.

4. Bag Sealing: After filling, the bag is sealed by a heat sealer. The sealing process uses heat to fuse the bag's edges together, ensuring it is tightly sealed to prevent spillage or contamination.

5. Date Coding and Printing: Some machines include a printer or coder to print batch numbers, production dates, or other information onto the bag.

6. Bag Ejection: The sealed bags are then ejected from the machine and moved to the next stage for storage or further processing.

7. Control System: The entire process is controlled by a PLC (Programmable Logic Controller) to ensure accuracy and efficiency, with sensors and feedback mechanisms that monitor the machine's performance and make adjustments when necessary.

The system uses a combination of a computer-controlled multihead weigher and a packaging machine for precise, fast, stable, and low-error automatic packaging with low noise. The materials comply with food packaging hygiene standards, ensuring good sealing performance and easy operation. This elevator is suitable for vertical lifting of granular materials in industries such as grain, food, feed, and chemicals. It is widely used in the food packaging industry and other sectors, with a broad range of applications.

1. What products can your counting and packaging line handle?

Our machines are suitable for:

· Capsules

· Tablets

· Gummies

· Softgels

· Pills

· Effervescent tablets

Different products may require different channel configurations and feeding systems.

2. What counting accuracy can your machine achieve?

Our electronic counting machines can reach up to 99.8% counting accuracy under normal production conditions.

For sticky products such as gummies, slight deviations may occur because products can overlap during feeding.

3. Can one machine handle different bottle sizes?

Yes.

Our machines support quick bottle size changeover by adjusting guide rails, vibration channels, and bottle positioning systems.

Suitable for:

· Round bottles

· Square bottles

· PET bottles

· HDPE bottles

4. What is the production speed?

Production speed depends on:

· Product size

· Product shape

· Bottle quantity

· Machine model

Examples:

· 8-channel counter: up to 25–40 bottles/min

· 16-channel counter: up to 40–70 bottles/min

· 24/32-channel counter: higher speeds available

5. Can your machines work with gummies?

Yes.

We provide counting solutions specially designed for gummies and sticky products.

Our machines use:

· Anti-stick feeding systems

· Adjustable vibration control

· Intelligent counting sensors

6. Do you provide complete bottling lines?

Yes.

We provide complete automatic counting and bottling solutions including:

· Bottle unscrambler

· Electronic counting machine

· Desiccant inserter

· Capping machine

· Induction sealing machine

· Labeling machine

· Collection turntable

7. Are your machines CE certified?

Yes.

Most of our machines support CE certification and comply with international export standards.

Additional certifications can be discussed according to your market requirements.

8. What voltage do your machines support?

Standard power supply:

· AC 220V / 50-60Hz

We can also customize:

· 110V

· 380V

· 415V

· Different plug standards

According to your country requirements.

9. How long is the delivery time?

Normally:

· Single machine: 7–15 working days

· Complete production line: 20–30 working days

Delivery time may vary during peak seasons.

10. Do you provide installation and after-sales service?

Yes.

We provide:

· Operation manuals

· Installation videos

· Online technical support

· Remote troubleshooting

· Lifetime technical assistance

Engineers overseas service can also be arranged if needed.

11. Can the machine connect with our existing production line?

Yes.

Our machines support integration with existing packaging systems and conveyors.

We can customize:

· Conveyor height

· Signal connection

· Feeding direction

· Layout design

12. What materials are used for the machine?

Main machine material:

· SUS304 stainless steel

Product contact parts:

· SUS316 stainless steel (optional)

Machines comply with GMP-oriented pharmaceutical production requirements.

13. Do you support OEM or customized solutions?

Yes.

We support:

· OEM branding

· Customized machine size

· Customized hopper design

· Multi-language interface

· Special product handling solutions

14. Which countries have you exported to?

Our machines have been exported to:

· USA

· Canada

· Spain

· Germany

· Mexico

· Thailand

· Indonesia

· Middle East countries

· South America

And many other regions worldwide.

15. How can I get a quotation?

Please send us:

· Product photos

· Product size

· Bottle type

· Required speed

· Voltage requirement

Our engineers will recommend the most suitable solution for you.
