Ry-90KLB-F
Machine Introduction

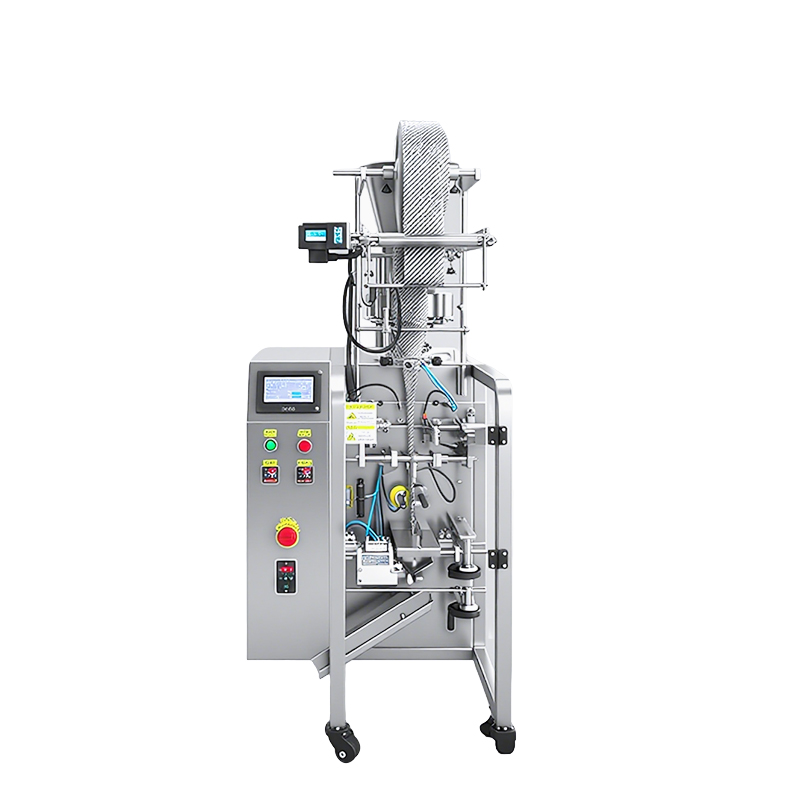

This Automatic Vertical Sachet Packing Machine is designed for efficient packaging of granules, powders, and small items. It features a PLC control system, high precision sealing, easy operation, and durable stainless steel construction.
Technical Parameters
Type |
Ry-90KLB-F |
Packing material |
OPP/CPP,OPP/CE,PET/PE And other composite materials |
measuring range |
1--50ML |
Bag-making size |
20-150mm(L)×20-90mm(W) |
Packing speed |
30-40Bags/min |
Max width of film roll |
180mm |
Control system |
PLC control system+English interface |
Sealing |
3 side sealing |
Power supply specification |
1N+PE/AC220V/50Hz 1.1 KW |
Overall size |
720(L)×680(W)×1750(H)mm |
The Ry-90KLB-F automatic vertical sachet packing machine streamlines the packaging of granules, powders, and small loose items into sealed sachets at speeds of 30 to 40 bags per minute. Built around a PLC control system with an English-language interface, this machine handles the entire cycle of film feeding, bag forming, product measuring, filling, three-side sealing, and date coding in a single continuous operation. Its compact 720 x 680 x 1,750 mm footprint makes it a practical choice for facilities where floor space is at a premium but production throughput cannot be compromised.
Manufacturers of pharmaceutical granules, food seasoning powders, chemical additives, and small hardware components rely on this machine for consistent sachet quality. The independent temperature control system maintains sealing accuracy within plus or minus 1 degree Celsius, ensuring airtight seals across different packaging film materials including OPP/CPP, OPP/CE, and PET/PE composites.
The machine operates in a continuous vertical forming-fill-seal cycle. First, the film roll unwinds and feeds into a forming collar that shapes the flat film into a continuous tube. Vertical sealing jaws create the back seal along the tube length, while horizontal sealing jaws seal the bottom of each individual sachet. The measured quantity of product, whether granules, powder, or small items, is then precisely dispensed through the center of the formed tube into the waiting sachet.
After filling, the horizontal sealing jaws close the top of the current sachet while simultaneously forming the bottom seal of the next one. A cutting knife separates the completed sachet, which drops onto the discharge conveyor. The entire sequence is governed by the PLC control system, which coordinates film feed rate, sealing temperature, filling volume, and cutting timing to maintain consistent output quality at production speeds.
Pharmaceutical manufacturers use the Ry-90KLB-F for packaging medicine granules, powdered herbs, and effervescent tablet fragments into single-dose sachets. Food companies apply it to seasoning powders, instant drink mixes, sugar portions, and spice blends. Chemical manufacturers rely on it for powdered cleaning agents, agricultural additives, and industrial catalysts in pre-measured doses. The machine also serves small-item packaging needs such as screws, washers, beads, and electronic components.
The 1 to 50 mL measuring range covers most single-serve sachet formats used in retail pharmaceutical and food markets. The three-side seal configuration produces flat sachets that are easy to stack, ship, and display on retail shelves.
The machine body is constructed from SUS304 stainless steel, meeting GMP-oriented pharmaceutical production requirements. Optional SUS316 stainless steel contact parts are available for applications involving corrosive products. CE certification is supported, and the machine complies with international export standards for packaging equipment in pharmaceutical, food, and chemical industries.
Hangzhou Ruiyi Machinery Technology Co., Ltd. brings over two decades of engineering experience to every machine. The company maintains a 10-person R&D team dedicated to continuous improvement of packaging equipment, with machines currently operating in production facilities across 50 countries including the United States, Canada, Germany, Spain, Mexico, Thailand, and Indonesia.
The Ry-90KLB-F integrates into existing production lines alongside counting machines, capping machines, labeling machines, and cartoning equipment. Conveyor height, signal connection protocols, feeding direction, and overall layout can be customized to match your facility configuration. OEM branding, customized machine dimensions, specialized hopper designs, and multi-language interfaces are available upon request.
Each machine includes comprehensive operation manuals and installation videos. Online technical support and remote troubleshooting services are available for the lifetime of the equipment. For facilities requiring on-site assistance, overseas engineer visits can be arranged for installation, training, and preventive maintenance. Delivery time for single machines is typically 7 to 15 working days, with complete production lines requiring 20 to 30 working days.
To receive an accurate quotation, please provide your product type, product density, required sachet size, target output speed, and local voltage specification. Our engineering team will recommend the optimal configuration and provide a detailed technical proposal.
Written by Jennifer Adams, Packaging Solutions Specialist at Hangzhou Ruiyi Machinery Technology Co., Ltd.
