8C High-Speed Automatic Counting Machine for Tablets, Capsules & Small Parts

Machine Introduction

This Counting Machine can be applied for counting capsules, soft gels, tablets, chewing gum, round pills, and other solid materials without the need for tooling when changing objects. Its part in contact with material is made of superior 316 stainless steel, which totally meets the GMP requirement.

Technical Parameters

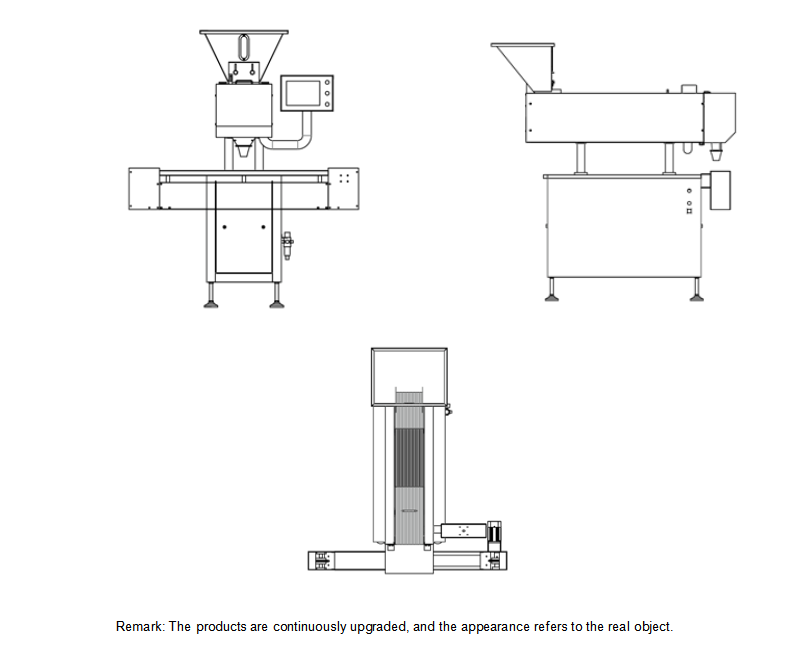

Machine Layout

Written by Olivia Bennett, Pharmaceutical Packaging Equipment Consultant at Hangzhou Ruiyi Machinery Technology Co., Ltd. Over the past 10 years, I have assisted more than 60 small and medium-sized pharmaceutical manufacturers in selecting and implementing electronic counting systems appropriate for their production scale and regulatory requirements.

What This Machine Does

The Ry-AEC-8C is an 8-channel fully automatic electronic counting machine designed for small to medium-volume production lines. It counts tablets, capsules, softgels, pills, chewing gum, and other solid products into bottles at speeds of 10 to 40 bottles per minute. With its SUS316 stainless steel product contact surfaces and GMP-compliant construction, the machine is purpose-built for pharmaceutical and nutraceutical manufacturers who need reliable counting accuracy in a compact, energy-efficient format. The 8-channel configuration makes it an ideal entry point for companies transitioning from semi-automatic to fully automated bottling operations.

Technical Specifications

• Model: Ry-AEC-8C
• Number of counting channels: 8
• Compatible products: Hard capsules (sizes 000-5), soft gelatin capsules, pills (diameter up to 20mm), chewing gum, tablets, and other solid objects (diameter 5.5-22mm)
• Hopper volume: 24L
• Production capacity: 10-40 bottles per minute
• Filling quantity range: 2-9,999 pieces per bottle (adjustable)
• Bottle size compatibility: Diameter 20-100mm, height 40-180mm
• Conveyor belt width: 114mm
• Compressed air: 0.6 MPa, 3.5L/min
• Power supply: 220V / 50Hz, single phase, 0.6kW
• Machine weight: 320kg
• Machine dimensions (L x W x H): 1360 x 1530 x 1700mm

How the 8-Channel Counting Process Works

Products placed in the 24-liter hopper feed onto a vibrating corrugated plate that distributes them across 8 parallel channels. Each channel uses a three-stage adjustable vibrating platform to control the speed at which products travel toward the counting head. As items pass through the counting head in single file, photoelectric sensors detect and count each one individually. A bottle-blocking device on the conveyor belt holds an empty bottle in position at the filling station. When the cumulative count across all channels reaches the target number, the counted batch drops into the waiting bottle. The conveyor advances to position the next bottle, and the cycle repeats automatically.

Key Features That Benefit Smaller Production Lines

1. Compact 8-channel design: The 8-channel configuration delivers throughput of up to 40 bottles per minute while occupying a smaller footprint than higher-channel models, making it suitable for facilities with limited floor space.
2. Wide bottle size range: Accommodates bottle diameters from 20 to 100mm, significantly broader than higher-channel models, providing flexibility for manufacturers with diverse bottle formats.
3. Low power consumption: At only 0.6kW, the machine consumes minimal electricity, keeping operating costs low for small and medium-volume production environments.
4. Three-stage vibration control: Each counting head features adjustable vibration intensity across three stages, allowing precise control of product feed speed for different shapes, sizes, and weights.
5. Anti-dust sensor technology: Proprietary photoelectric sensors maintain counting stability in high-dust conditions, reducing the frequency of cleaning interruptions during production.
6. 99.8% counting accuracy: Photoelectric detection technology provides pharmaceutical-grade counting precision essential for regulatory compliance and batch documentation.
7. Tool-free product changeover: No mold changes or tooling adjustments are needed when switching between capsules, tablets, softgels, or other solid products, only touch screen parameter updates.
8. Intelligent safety logic: No-bottle-no-counting, self-diagnosis, and alarm functions prevent miscounts and protect against operational errors.

Applications for Small to Medium-Volume Manufacturers

The Ry-AEC-8C is ideal for pharmaceutical startups and mid-size manufacturers producing prescription tablets, OTC medications, and capsule supplements at moderate daily volumes. Nutraceutical companies use it for vitamin and mineral supplement bottling. Specialty food manufacturers deploy it for counting gummy vitamins, chewable tablets, and confectionery products. Contract packaging organizations with frequent product changeovers benefit from the machine's tool-free format changes and broad bottle size compatibility. The machine's lower throughput range and energy efficiency also make it suitable for pilot production lines and clinical trial supply manufacturing.

GMP Compliance and Material Standards

Product contact parts are constructed from SUS316 stainless steel as standard, fully meeting GMP pharmaceutical production requirements. The machine frame uses SUS304 stainless steel. CE certification is supported, and the machine complies with international export standards. The compact design and moderate weight of 320kg facilitate installation in facilities without specialized heavy equipment access.

Production Line Integration

The machine integrates into complete automatic bottling lines with bottle unscramblers, desiccant inserters, capping machines, induction sealing machines, labeling machines, and collection turntables. Conveyor height and signal interfaces can be customized for existing line configurations. The PLC system supports coordinated operation with upstream and downstream equipment.

After-Sales Support

Each machine includes operation manuals and installation videos. Online technical support, remote troubleshooting, and lifetime technical assistance are standard. Overseas engineer installation can be arranged. Standard delivery time is 7 to 15 working days for single machines.
