In the modern pharmaceutical industry, the capsule filling machine is a critical piece of equipment widely used in the production of medicines, health supplements, and nutritional products. It significantly improves production efficiency while ensuring dose accuracy and consistency. This article provides a detailed explanation of the working principle of capsule filling machines to help pharmaceutical enterprises and industry professionals better understand their operation.
A capsule filling machine is an automated device designed to fill pharmaceutical powders, granules, liquids, or semi-solid materials into empty capsules. It integrates mechanical, pneumatic, and electronic systems to achieve accurate filling and sealing of capsules. According to the level of automation, capsule filling machines are commonly categorized into three types:
Manual Type: Suitable for small-scale production; simple in structure and ideal for hospital compounding or laboratory use.
Semi-Automatic Type: Combines manual and automatic operations, offering a balance between efficiency and cost-effectiveness; ideal for small to medium-sized enterprises.

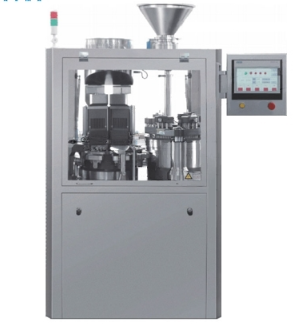

Fully Automatic Type: Designed for large-scale industrial production and can be connected with polishing machines, dedusters, and capsule sorting devices to form a complete production line.
The capsule filling process generally involves the following key steps:
Empty capsules are loaded into the machine via a hopper and conveyed by gravity or mechanical systems to the alignment station, where they are accurately positioned for further processing.
Using vacuum suction or mechanical force, the machine separates the capsule cap (upper part) from the capsule body (lower part), placing them into separate upper and lower modules.
The dosing system accurately dispenses powder, granules, or liquid medication into the capsule body. Common filling methods include dosing disks, screw feeders, or liquid pumps, depending on the material type.
After filling, the contents inside the capsule are compacted to ensure uniformity and stability of the dosage. This step prevents air gaps or loose material inside the capsule.
The capsule cap and body are rejoined and securely locked through mechanical pressure, forming a sealed final product.
Completed capsules are ejected to the discharge outlet. Some machines are equipped with automatic cleaning functions to prepare for the next production cycle, thereby improving operational efficiency.
Efficient operation of a capsule filling machine depends on the coordinated function of several essential components:
Hopper: Stores and feeds capsules or powder, ensuring continuous material supply.
Dosing System: Measures and dispenses accurate quantities of medicine into each capsule.
Mold Holders and Brackets: Secure capsules in place and ensure proper positioning during filling.
Locking Mechanism: Rejoins the capsule cap and body with controlled pressure.
Control System: Uses PLC and HMI (Human-Machine Interface) for precise program control and real-time status monitoring.
High Efficiency: Fully automatic machines can produce tens of thousands of capsules per hour, greatly increasing productivity.
High Accuracy: Precision dosing systems ensure consistent dosage in every capsule, improving product quality.
Automation: Reduces human intervention, lowering labor intensity and operational risks.
GMP Compliance: The design complies with Good Manufacturing Practice (GMP) standards, ensuring pharmaceutical safety and quality.
Energy-Saving and Eco-Friendly: Modern machines feature frequency control and low-energy motors, improving energy efficiency.
Capsule filling machines are widely used in the following sectors:
Pharmaceutical Industry: For standard capsule formulations of medicinal drugs.
Nutraceutical Industry: For dietary supplements, herbal extracts, and other health products.
Veterinary Medicine: Used for producing capsules for animal treatment.
Research and Custom Production: Supports small-batch or flexible manufacturing for R&D purposes.
As a vital component of modern pharmaceutical production, capsule filling machines are known for their efficiency, precision, and automation. Understanding their working principle and internal structure helps enterprises optimize their production process, reduce operational costs, and enhance product competitiveness. Looking ahead, with the integration of smart manufacturing and digital technology, capsule filling machines will continue evolving toward higher levels of automation and intelligence, driving innovation and progress in the pharmaceutical industry.
