Streamline Production: High-Speed Capsule Filling Machine for Pharma Industry

Machine Introduction

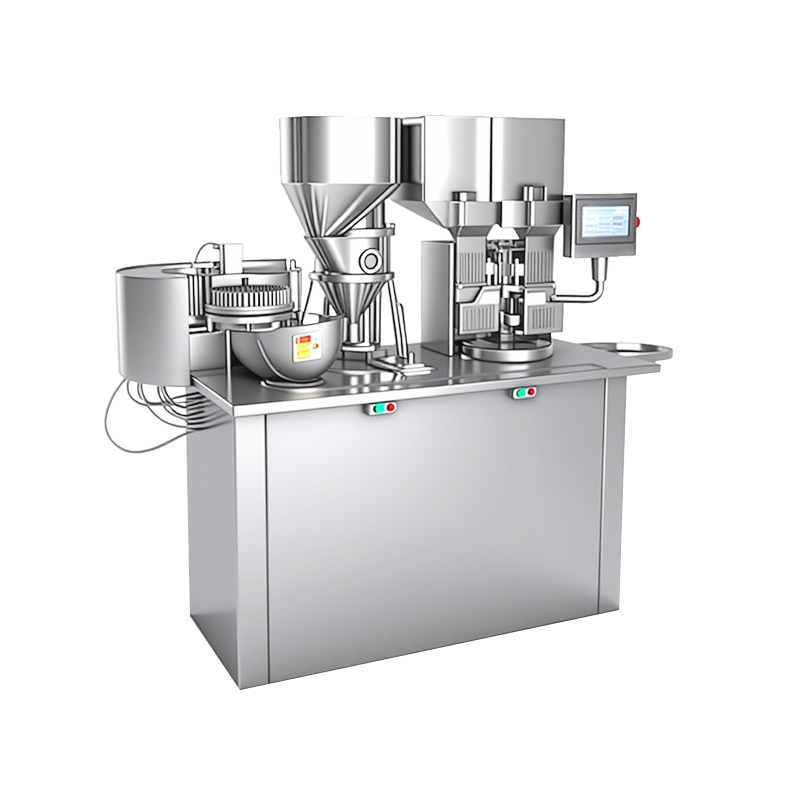

The Automatic Capsule Filling Machine is a high-performance pharmaceutical equipment designed for precise, efficient, and hygienic capsule production. Built with advanced technology, it integrates capsule feeding, separation, powder filling, and locking in one streamlined process. Its stainless-steel structure ensures durability and compliance with GMP standards, while the intuitive touch-screen control panel allows easy operation and monitoring.

With high accuracy and consistent output, this machine is suitable for pharmaceutical factories, health supplement manufacturers, and research laboratories. Its compact design saves space, while the quick-change parts and easy cleaning system improve productivity and reduce downtime. The Automatic Capsule Filling Machine is the ideal solution for safe, reliable, and efficient capsule production.

Technical Parameters

Written by Daniel Brooks, Pharmaceutical Equipment Integration Specialist at Hangzhou Ruiyi Machinery Technology Co., Ltd. I have spent 15 years commissioning capsule filling and packaging lines for GMP-certified pharmaceutical facilities across North America, Europe, and Southeast Asia, with particular focus on high-volume production optimization and regulatory compliance.

What This Machine Does

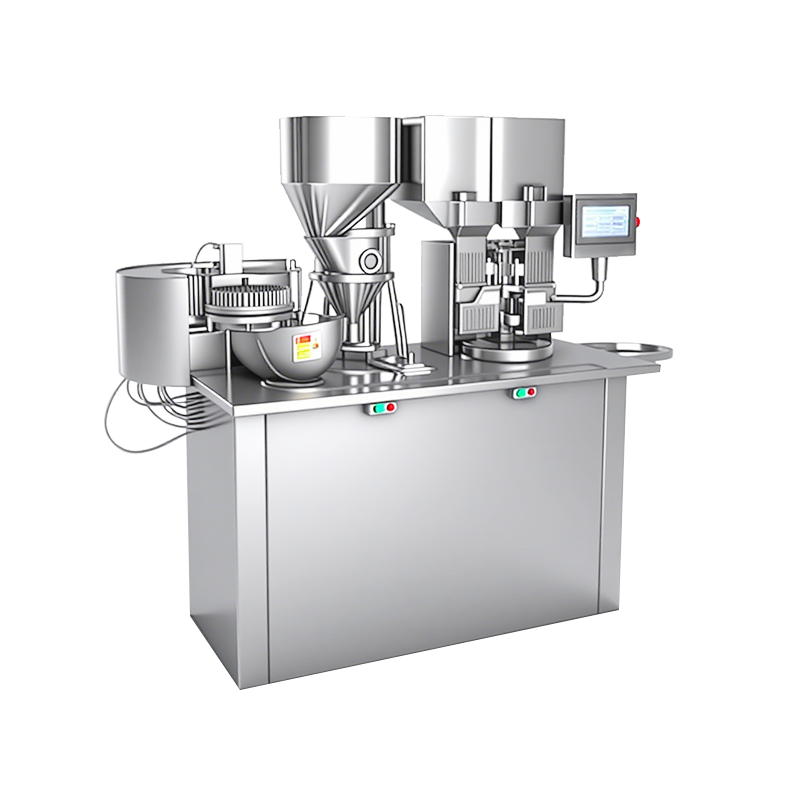

The Ry-BJ-IV-A is an automatic capsule filling machine designed for pharmaceutical factories, health supplement manufacturers, and research laboratories that require precise, high-throughput capsule production. It integrates capsule feeding, separation, powder filling, and locking into one continuous process, achieving output rates of 20,000 to 40,000 capsules per hour. The stainless-steel construction and GMP-compliant design make it suitable for regulated pharmaceutical manufacturing environments where product safety and batch traceability are mandatory.

Technical Specifications

• Model: Ry-BJ-IV-A
• Compatible capsule sizes: No. 000 to No. 5
• Production capacity: 20,000-40,000 capsules per hour
• Power supply: 220V/380V, single or three-phase, 5kW
• Vacuum pump capacity: 40 cubic meters per hour
• Air pressure requirement: 0.03 cubic meters per minute at 0.7 MPa
• Machine dimensions (L x W x H): 1300 x 700 x 1650mm
• Machine weight: 420kg
• Finished product pass rate: Up to 97%

How the Capsule Filling Process Works

Empty capsules are fed into the machine's hopper, where they are automatically oriented and separated into body and cap halves. The separated capsule bodies move to the filling station, where a precise dosing mechanism fills them with the required powder or granule material. After filling, the capsule caps are aligned and rejoined with the bodies using a mechanical locking system that ensures secure closure during transport and handling. The entire process is monitored through a touch-screen interface that provides real-time status updates and allows operators to adjust filling parameters on the fly.

Key Engineering Features

1. Dual-head design: Two filling heads operate simultaneously, delivering faster cycle times and higher throughput compared to single-head configurations.
2. Electrical and pneumatic dual control: Combines electronic counter precision with pneumatic actuation reliability, equipped with computer-controlled speed adjustment for consistent filling accuracy.
3. Inclined top locking mechanism: The locking system uses an inclined top design that makes capsule closing more convenient and reduces mechanical stress on capsule shells.
4. Automatic positioning and separation: The U-shaped flipping separation mechanism handles capsule orientation, separation, and locking without manual intervention, reducing labor intensity and human error.
5. Universal capsule compatibility: Accepts both domestic and imported capsule brands without requiring format part changes, maintaining a finished product pass rate of up to 97%.
6. Error detection sensors: Built-in sensors identify misaligned capsules and trigger automatic rejection, ensuring that only properly filled and locked capsules reach the output stage.
7. Compact footprint: The machine occupies less than 1 square meter of floor space, making it practical for facilities where production area is at a premium.

Applications in Pharmaceutical Production

This machine is primarily used in pharmaceutical factories for producing hard gelatin capsule medications including antibiotics, vitamins, herbal extracts, and compound formulations. Health supplement manufacturers use it for protein powder capsules, probiotic formulations, and mineral supplements. Research laboratories and pilot production facilities benefit from its manageable throughput range when developing new formulations or conducting clinical trial supply manufacturing. The machine also serves contract manufacturers who need to switch between different capsule products and sizes frequently.

GMP Compliance and Material Standards

The machine structure is built from SUS304 stainless steel with product contact parts available in SUS316 stainless steel for applications involving corrosive or reactive powder formulations. The design follows GMP-oriented pharmaceutical production requirements, with smooth surfaces, minimal horizontal ledges, and accessible cleaning points that facilitate validation and changeover procedures. CE certification is supported for international shipment.

Production Line Integration

The Ry-BJ-IV-A integrates into complete pharmaceutical packaging lines alongside bottle unscramblers, electronic counting machines, desiccant inserters, capping machines, induction sealing machines, and labeling machines. Conveyor height, signal interface protocols, and feeding direction can be customized to match existing line configurations. The machine's PLC system can communicate with upstream and downstream equipment for synchronized production line operation.

After-Sales Support

Every machine includes operation manuals and installation videos. Online technical support and remote troubleshooting services are available throughout the equipment lifecycle. Lifetime technical assistance is standard, and overseas engineer installation can be arranged for comprehensive on-site commissioning. Standard delivery time is 7 to 15 working days for single machines.
