Machine Introduction
Bottle Unscrambler is very suitable for round plastic bottles, which can unscramble and orient bottles automatically at high speeds eliminating the expensive, inefficient manual labor of this process. It features a space efficient footprint, simple setup and operation, and flexibility in terms of container types and sizes.
Technical Parameters
Model Name |
Ry-BU-s |
Application |
Round Plastic Bottle |
Bottle Size |
Diameter: 20-100mm Height: 20-150mm (Bottle diameter needs to be smaller than height.) |
Capacity |
30-100 bottles/min |
Hopper Volume |
200L |
Voltage |
AC220V 50Hz Single Phase |
Power |
0.25KW |
Machine Weight |
230kg |
Overall Dimension (L*W*H) |
1350*1000*1270mm |

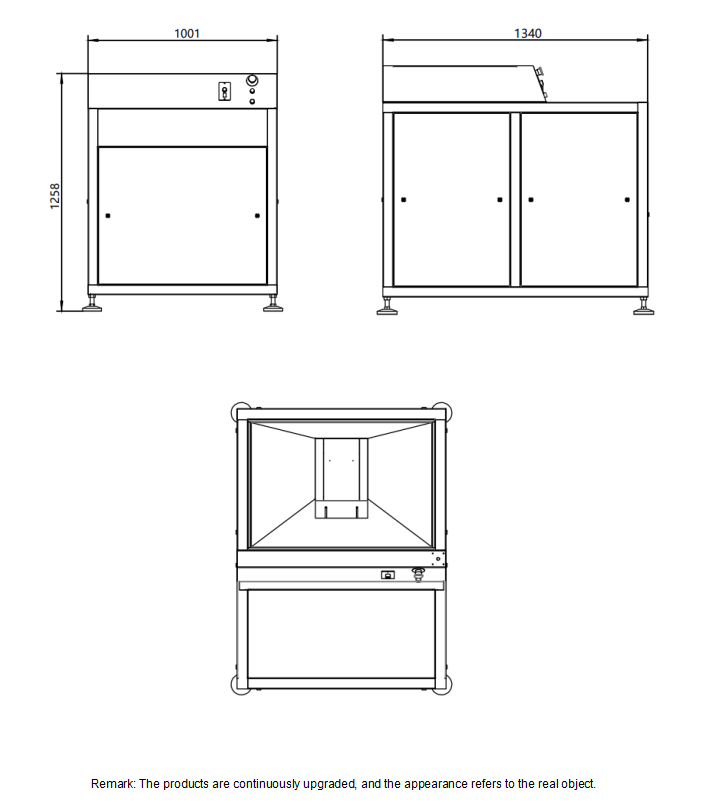

Machine Layout
Bottle unscrambler receives the bottles in random positions, then the bottles are sorted and oriented by disc sorter. Bottles are placed in an upright position and stabilized for exit to user’s conveyor, ready for the next process in production line.
1.The machine body is made of 304 stainless steel material, which is full GMP-compliant design.
2.By replacing different molds of rotating disc, the machine can be applied for different bottle sizes.
3. It features simple setup and operation. After bottles are fed into machine, user turns on the switch and the machine will start unscrambling. And speed can be adjusted with speed regulator, so that it can comply with user’s production line.
1. What products can your counting and packaging line handle?
Our machines are suitable for:
· Capsules
· Tablets
· Gummies
· Softgels
· Pills
· Effervescent tablets
Different products may require different channel configurations and feeding systems.
2. What counting accuracy can your machine achieve?
Our electronic counting machines can reach up to 99.8% counting accuracy under normal production conditions.
For sticky products such as gummies, slight deviations may occur because products can overlap during feeding.
3. Can one machine handle different bottle sizes?
Yes.
Our machines support quick bottle size changeover by adjusting guide rails, vibration channels, and bottle positioning systems.
Suitable for:
· Round bottles
· Square bottles
· PET bottles
· HDPE bottles
4. What is the production speed?
Production speed depends on:
· Product size
· Product shape
· Bottle quantity
· Machine model
Examples:
· 8-channel counter: up to 25–40 bottles/min
· 16-channel counter: up to 40–70 bottles/min
· 24/32-channel counter: higher speeds available
5. Can your machines work with gummies?
Yes.
We provide counting solutions specially designed for gummies and sticky products.
Our machines use:
· Anti-stick feeding systems
· Adjustable vibration control
· Intelligent counting sensors
6. Do you provide complete bottling lines?
Yes.
We provide complete automatic counting and bottling solutions including:
· Bottle unscrambler
· Electronic counting machine
· Desiccant inserter
· Capping machine
· Induction sealing machine
· Labeling machine
· Collection turntable
7. Are your machines CE certified?
Yes.
Most of our machines support CE certification and comply with international export standards.
Additional certifications can be discussed according to your market requirements.
8. What voltage do your machines support?
Standard power supply:
· AC 220V / 50-60Hz
We can also customize:
· 110V
· 380V
· 415V
· Different plug standards
According to your country requirements.
9. How long is the delivery time?
Normally:
· Single machine: 7–15 working days
· Complete production line: 20–30 working days
Delivery time may vary during peak seasons.
10. Do you provide installation and after-sales service?
Yes.
We provide:
· Operation manuals
· Installation videos
· Online technical support
· Remote troubleshooting
· Lifetime technical assistance
Engineers overseas service can also be arranged if needed.
11. Can the machine connect with our existing production line?
Yes.
Our machines support integration with existing packaging systems and conveyors.
We can customize:
· Conveyor height
· Signal connection
· Feeding direction
· Layout design
12. What materials are used for the machine?
Main machine material:
· SUS304 stainless steel
Product contact parts:
· SUS316 stainless steel (optional)
Machines comply with GMP-oriented pharmaceutical production requirements.
13. Do you support OEM or customized solutions?
Yes.
We support:
· OEM branding
· Customized machine size
· Customized hopper design
· Multi-language interface
· Special product handling solutions
14. Which countries have you exported to?
Our machines have been exported to:
· USA
· Canada
· Spain
· Germany
· Mexico
· Thailand
· Indonesia
· Middle East countries
· South America
And many other regions worldwide.
15. How can I get a quotation?
Please send us:
· Product photos
· Product size
· Bottle type
· Required speed
· Voltage requirement
Our engineers will recommend the most suitable solution for you.
