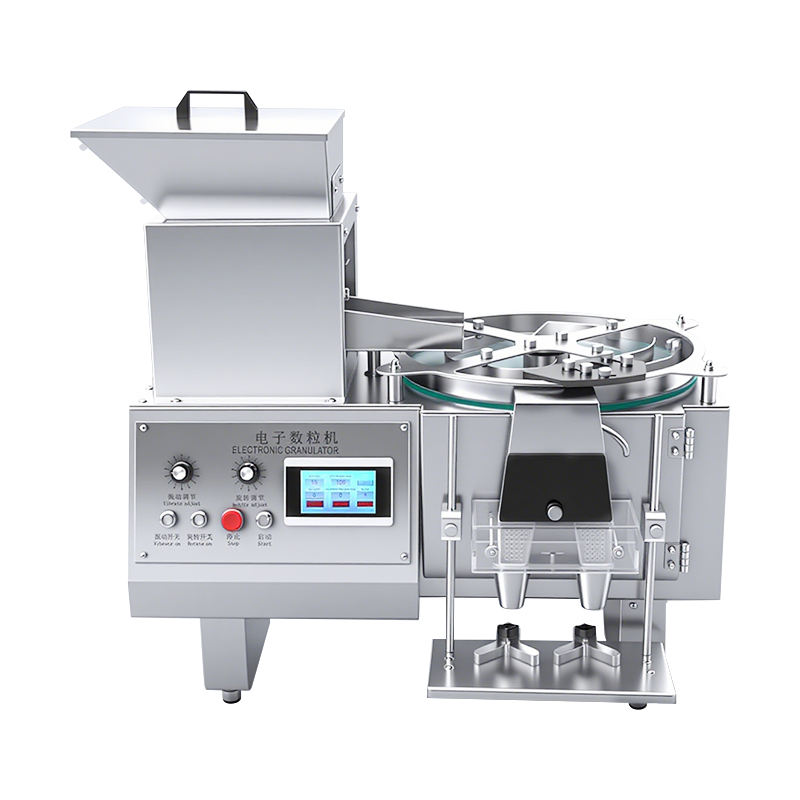

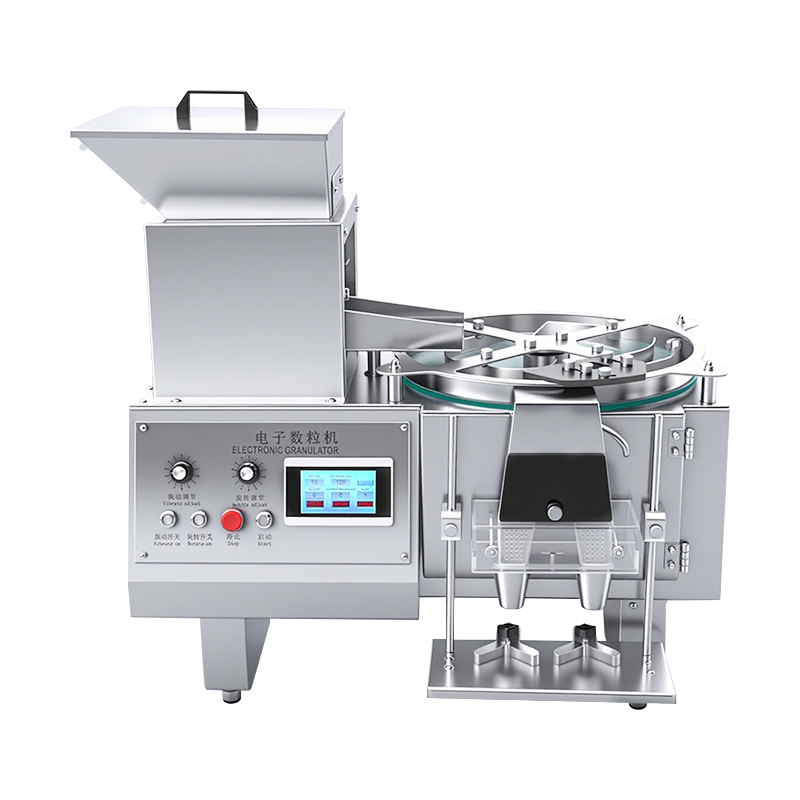

A desktop capsule counting machine is a compact and high-precision device designed for accurately counting and filling capsules, tablets, and other solid granules. With its small footprint and easy operation, it is the ideal choice for laboratories, small-scale pharmaceutical production, and quality control departments.
Feeding System: Ensures uniform delivery of granules to the counting area, using either vibration or screw feeding mechanisms.
Counting System: The heart of the machine, featuring advanced photoelectric or weight sensors that ensure highly accurate counting of each particle.
Control System: Equipped with a microprocessor or PLC control unit, allowing users to set parameters like target count, speed, and batch quantity via a touchscreen interface.
Filling System: Automatically dispenses counted products into containers through gravity, pneumatic, or mechanical filling systems.
The operator loads materials into the feeding hopper.
The feeding system transports the granules evenly to the counting area.
Optical sensors detect each passing particle and send data to the control unit.
Once the preset count is reached, the system directs the filling unit to discharge the product into the container.
Regular cleaning and maintenance ensure continuous precision and stable operation.
✅ Compact Design: Small and light weight, perfect for limited workspaces or lab benches.
✅ High Counting Accuracy: Advanced photoelectric sensors ensure precision and reliability.
✅ Multi-Industry Use: Suitable for pharmaceuticals, food, nutraceuticals, and chemical granules.
✅ Easy to Operate: Intuitive touchscreen interface; even non-technical users can handle it easily.
✅ GMP Compliant: Designed to meet strict pharmaceutical industry standards.
Dimensions: 448.5 × 334 × 608 mm
Counting Range: From a few grams up to dozens of grams
Applicable Particle Size: 5 – 15 mm
Counting Speed: 200–400 pcs/min (depending on material)
Power Supply: 220V / 50Hz
Pharmaceutical Industry: Accurate capsule and tablet counting for bottling and packaging lines.
Food Industry: Ensures consistent piece counts in confectionery or supplement packaging.
Chemical Industry: Precise portioning of fine granules and specialty chemicals.
The desktop capsule counting machine combines high precision, smart control, and compact structure, making it the ideal solution for laboratories and small-batch production. With ongoing advancements in automation and sensor technology, it continues to enhance efficiency and reliability across industries.
Why Choose RY Desktop Counting Machine?
| Feature | RY Machine | Traditional Counting |
|---|---|---|
| Counting Accuracy | ±99.9% | 90–95% |
| Operation | Fully automatic, touchscreen control | Manual or semi-auto |
| Cleaning | Tool-free disassembly | Time-consuming |
| Compliance | GMP-certified | Non-standard |
| Maintenance | Easy, low cost | Frequent servicing |
