Ry-140FLB-Y
Machine Introduction

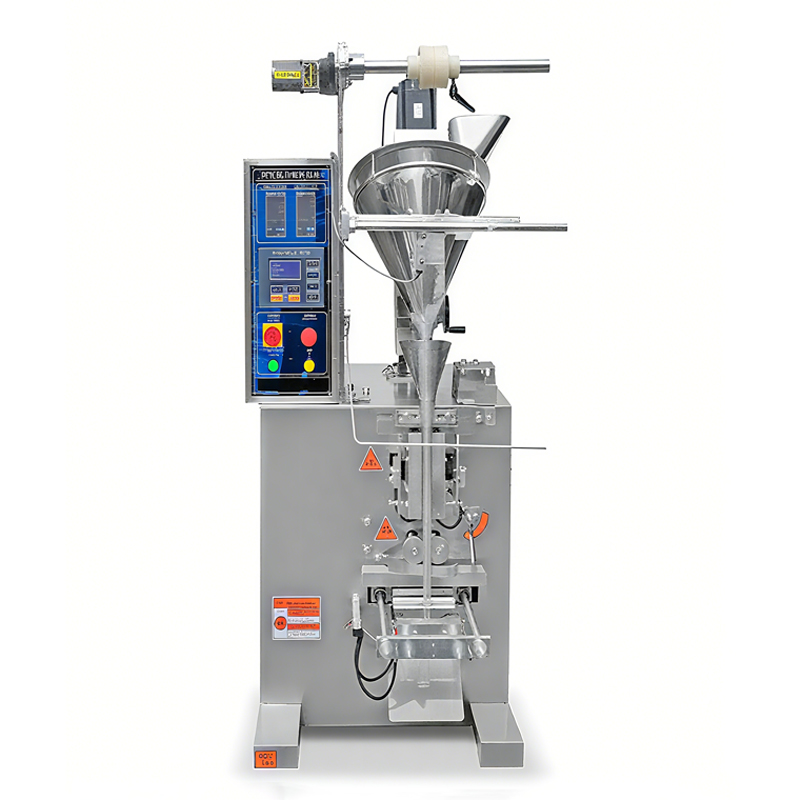

The Powder Sachet Packing Machine is a high-efficiency packaging solution designed for precise and hygienic packing of powdered products into sealed sachets. Equipped with an advanced auger filling system, it ensures accurate dosing and minimal product waste. The vertical form-fill-seal design allows for automatic film feeding, bag forming, filling, sealing, and cutting in a continuous process. Made from durable stainless steel, it meets GMP standards and is ideal for food, pharmaceutical, and chemical industries. This machine supports a wide range of powders, such as coffee, milk powder, protein powder, flour, spices, and more, with easy operation and low maintenance requirements.
Technical Parameters
Model Name |
Ry-140FLB-Y |
Max film width |
300mm |
Bag making width |
30-140mm |
Bag making length |
40-170mm |
Packing speed |
0-50bags/min |
Sealing method |
Back seal, three-side seal, four-side seal |
Metering method |
Screw metering |
Film thickness |
0.03-0.09mm |
Packing material |
OPP/CPP PET/PE and other composite materials |
Film pulling method |
Stepper motor pull film |
Power supply |
220V 1.5KW |
Machine size |
1020*770*1540mm |
Machine packing size |
1110*850*1720mm |
The powder sachet packing machine operates by automatically completing measuring, filling, sealing, cutting, and counting processes in a continuous cycle. Powder material is fed into the stainless steel hopper, where it is dispensed through an auger or screw dosing system to ensure accurate measurement. Packaging film is unwound from the film roll and formed into a sachet shape by the forming collar. The machine then seals the vertical seam, fills the measured powder into the formed sachet, and seals the top and bottom edges using heat-sealing jaws. Finally, the machine cuts the sachets to the desired length and discharges the finished packages. All operations are controlled by a programmable control system for precise, efficient, and hygienic packaging.
1. High-precision Auger Filling System – Ensures accurate powder dosage with minimal waste.
2. Automatic Packaging Process – Completes forming, filling, sealing, cutting, and counting in one cycle.
3. Stainless Steel Construction – Meets GMP standards, ensuring hygiene and durability.
4. User-friendly Control Panel – Digital display for easy operation and parameter adjustment.
5. Adjustable Bag Length & Sealing Temperature – Accommodates different packaging needs.
6. Compact Design – Saves floor space while maintaining high efficiency.
7. Heat Sealing Technology – Provides strong, leak-proof seals for product freshness.
1. What products can your counting and packaging line handle?
Our machines are suitable for:
· Capsules
· Tablets
· Gummies
· Softgels
· Pills
· Effervescent tablets
Different products may require different channel configurations and feeding systems.
2. What counting accuracy can your machine achieve?
Our electronic counting machines can reach up to 99.8% counting accuracy under normal production conditions.
For sticky products such as gummies, slight deviations may occur because products can overlap during feeding.
3. Can one machine handle different bottle sizes?
Yes.
Our machines support quick bottle size changeover by adjusting guide rails, vibration channels, and bottle positioning systems.
Suitable for:
· Round bottles
· Square bottles
· PET bottles
· HDPE bottles
4. What is the production speed?
Production speed depends on:
· Product size
· Product shape
· Bottle quantity
· Machine model
Examples:
· 8-channel counter: up to 25–40 bottles/min
· 16-channel counter: up to 40–70 bottles/min
· 24/32-channel counter: higher speeds available
5. Can your machines work with gummies?
Yes.
We provide counting solutions specially designed for gummies and sticky products.
Our machines use:
· Anti-stick feeding systems
· Adjustable vibration control
· Intelligent counting sensors
6. Do you provide complete bottling lines?
Yes.
We provide complete automatic counting and bottling solutions including:
· Bottle unscrambler
· Electronic counting machine
· Desiccant inserter
· Capping machine
· Induction sealing machine
· Labeling machine
· Collection turntable
7. Are your machines CE certified?
Yes.
Most of our machines support CE certification and comply with international export standards.
Additional certifications can be discussed according to your market requirements.
8. What voltage do your machines support?
Standard power supply:
· AC 220V / 50-60Hz
We can also customize:
· 110V
· 380V
· 415V
· Different plug standards
According to your country requirements.
9. How long is the delivery time?
Normally:
· Single machine: 7–15 working days
· Complete production line: 20–30 working days
Delivery time may vary during peak seasons.
10. Do you provide installation and after-sales service?
Yes.
We provide:
· Operation manuals
· Installation videos
· Online technical support
· Remote troubleshooting
· Lifetime technical assistance
Engineers overseas service can also be arranged if needed.
11. Can the machine connect with our existing production line?
Yes.
Our machines support integration with existing packaging systems and conveyors.
We can customize:
· Conveyor height
· Signal connection
· Feeding direction
· Layout design
12. What materials are used for the machine?
Main machine material:
· SUS304 stainless steel
Product contact parts:
· SUS316 stainless steel (optional)
Machines comply with GMP-oriented pharmaceutical production requirements.
13. Do you support OEM or customized solutions?
Yes.
We support:
· OEM branding
· Customized machine size
· Customized hopper design
· Multi-language interface
· Special product handling solutions
14. Which countries have you exported to?
Our machines have been exported to:
· USA
· Canada
· Spain
· Germany
· Mexico
· Thailand
· Indonesia
· Middle East countries
· South America
And many other regions worldwide.
15. How can I get a quotation?
Please send us:
· Product photos
· Product size
· Bottle type
· Required speed
· Voltage requirement
Our engineers will recommend the most suitable solution for you.
