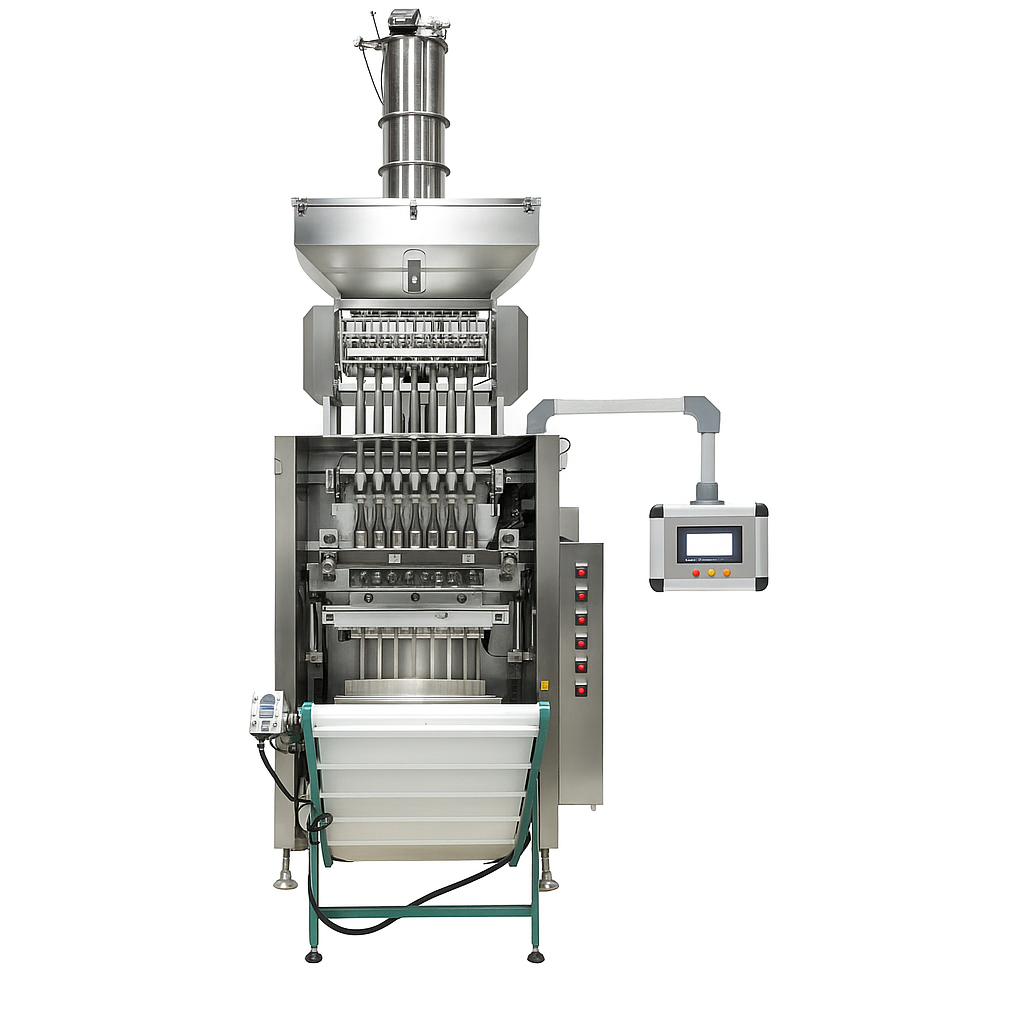

Automatic Efficient Multi-Lane Granule Bag Packing Machine with Back Sealing

The Ry-560-8KDB-F Multi-Lane Granule Packing Machine delivers high-speed packaging for granular products across food, pharmaceutical, and daily chemical industries. With eight simultaneous lanes operating at 200 to 280 bags per minute, this machine integrates film forming, filling, sealing, and cutting in a single continuous process. Designed for sugar, coffee, nuts, and medicine granules, the Ry-560-8KDB-F combines servo-driven film pulling with PLC computer control to achieve precise dosing, reliable back-sealing, and consistent output quality.

Technical Specifications

• Model: Ry-560-8KDB-F
• Number of Lanes: 8
• Bag Length: 50–170mm
• Bag Width: 20–31mm
• Maximum Roll Film Width: 560mm
• Packing Speed: 200–280 bags/min
• Measuring Range: 1–20ml per lane
• Air Consumption: 6 kg/cm²
• Gas Consumption: 0.8m³/min
• Power Supply: 1N+PE/50Hz/AC 380V
• Total Power: 5kW
• Dimensions (L×W×H): 1765×1880×3210mm
• Machine Weight: 650kg

Core Features

• Dual-Language Touch Screen Display: Simplifies operation for international users and reduces training time for new operators.
• PLC Computer Control System: Ensures stable operation with parameter adjustments possible during running, eliminating the need to stop production for changes.
• Ten-Recipe Storage: Stores up to ten product configurations for quick changeover between different bag sizes and filling volumes.
• Servo Motor Film Pulling: Achieves precise film positioning for accurate bag length control, reducing film waste.
• Servo-Controlled Dosing: Each lane's measurement is independently servo-controlled for accurate and consistent filling across all lanes.
• Independent Temperature Control: Each sealing zone maintains temperature within ±1°C, accommodating various composite films and PE film materials.
• Automatic Material Level Detection: Integrated vacuum feeding system lifts materials automatically when the hopper level drops, maintaining continuous operation.
• All-in-One Operation: Material lifting, measuring, bag making, filling, sealing, date printing, and product output occur in a single synchronized cycle.
• SUS304 Stainless Steel Construction: Meets GMP and food safety standards for hygienic production environments.
• Low-Noise Operation: Engineered for quiet working conditions, protecting operator comfort during extended production runs.

How It Works

The multi-lane packing machine operates through a continuous cycle. Packaging film is automatically unwound from the roll and shaped into multiple vertical tubes by forming devices. Granules are measured by volumetric cups, auger filler, or weighing system, then dispensed synchronously into each lane. The machine performs vertical and horizontal sealing simultaneously, creating firm, airtight pouches with back-sealed edges. Finally, the bags are cut into individual packages and delivered by the conveyor. The eight-lane parallel operation multiplies output significantly compared to single-lane machines, making it ideal for high-volume production requirements.

Applications

The Ry-560-8KDB-F handles a wide range of granular and free-flowing products:

• Food: Sugar, salt, coffee powder, seasoning powders, nuts, seeds, dried fruits
• Pharmaceutical: Granular medicines, herbal medicine granules, effervescent granules
• Daily Chemical: Detergent powder, cosmetic granules, desiccant packets
• Agricultural: Seeds, fertilizer granules, feed additives

Quality and Compliance

The machine is built entirely with SUS304 stainless steel and complies with GMP-oriented pharmaceutical production requirements. CE certification is available for international markets. Product contact parts can be upgraded to SUS316 stainless steel for applications requiring enhanced corrosion resistance. Each machine undergoes factory acceptance testing including speed verification, sealing integrity checks, and filling accuracy measurement across all eight lanes.

Installation and After-Sales Service

Hangzhou Ruiyi Machinery Technology Co., Ltd. provides operation manuals, installation videos, online technical support, and remote troubleshooting with every machine. Lifetime technical assistance is included. The machine integrates with existing production systems through customizable conveyor height, signal connections, and feeding direction. On-site engineer installation is available for international customers. Standard delivery time is 7–15 working days for a single machine.
