Auto Labeling Machine – High-Speed Precision Label Applicator

Machine Introduction

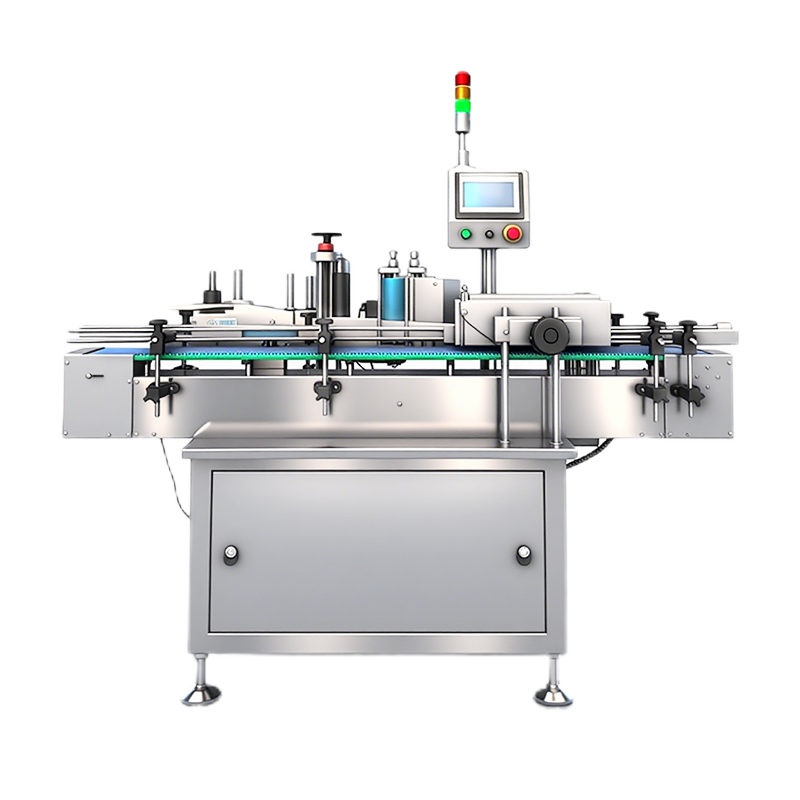

Automatic round bottle labeling machine, also called vertical labeling machine, is suitable for labeling various round bottles. It is used for full/partial wrap around labeling on different sizes of round container, which is capable of labeling up to 100 containers per minutes depending on products and label size. Our labeling machine is widely used in Pharmaceutical, Food, Beverage, Cosmetic and other manufacturing industries.

Technical Parameters

Model Name	Ry-RBL
Application	Round plastic bottle
Bottle Size	Diameter ≤ 100mm Height: 40-180mm
Capacity	50-100 bottles/min (According to the sizes of the product and label)
Label Requirement	Self-Adhesive Sticker Labels in Roll Form
Label Size	Width ≤ 110mm Length is less than the circumference of bottle.
Label Roll Size	Inner Diameter: Ø 75mm Outer Diameter: Ø 350mm (Max.)
Compressed Air	0.6Mpa
Voltage	220V  50HZ  Single Phase
Power	0.15KW
Machine Weight	190kg
Overall Dimension (L*W*H)	1760*950*1400mm

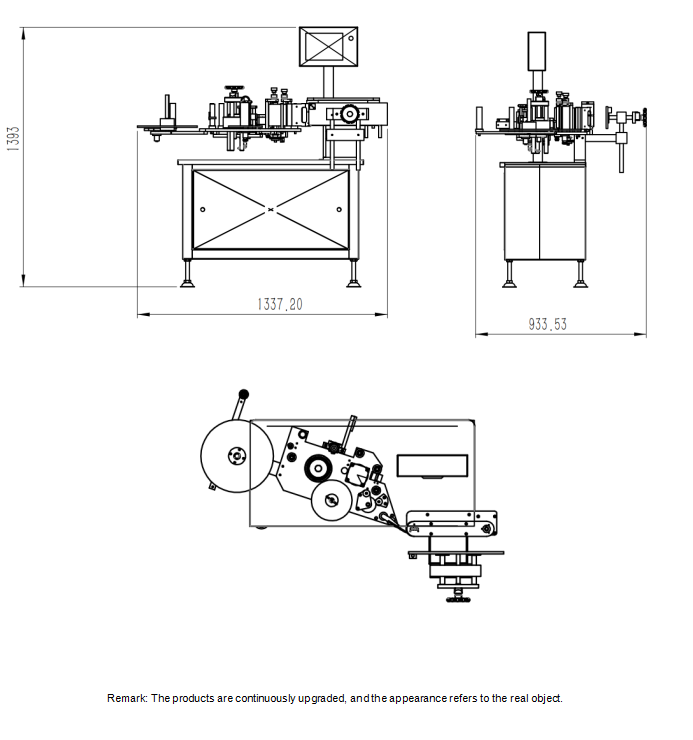

Machine Layout

• Fix the label roll on the label holder, and adjust the labeling position.
• Then adjust the distance between two rails to make sure the distance is suitable for the product to pass.
• Manually put bottles on conveyor or using an automatic bottle turntable, and bottles will be separated by the bottle separator to keep the bottle distance for guarantee the working stable.
• The bottle sensor detects the passing bottles and send a signal back to the control system. At the appropriate position, the system controls the label to be sent out and applied to the bottle evenly.
• Rolling belts press bottles and make the labels more firmly without bubbles, wrinkles or alignment problems.

• 1. Made with 304 stainless steel, allowing for easy maintenance and remains in perfect condition after long term operations.
• 2. Equipped with touch screen and PLC, easy to set or adjust working parameters, and language of control panel can be customized.
• 3. Labeling station adjustment: According to different bottle height, user can adjust the height of labeling station with an adjusting handle, no need for any other tools.
• 4. Bottle separating device: Bottle separator can keep the bottle distance for guarantee the working stable.
• 5. Photoelectric bottle sensor: The bottle sensor detects the passing bottles and send a signal back to the control system. Then the label dispensing system will discharge a label and apply it on the bottle.

1. What products can your counting and packaging line handle?

Our machines are suitable for:

· Capsules

· Tablets

· Gummies

· Softgels

· Pills

· Effervescent tablets

Different products may require different channel configurations and feeding systems.

2. What counting accuracy can your machine achieve?

Our electronic counting machines can reach up to 99.8% counting accuracy under normal production conditions.

For sticky products such as gummies, slight deviations may occur because products can overlap during feeding.

3. Can one machine handle different bottle sizes?

Yes.

Our machines support quick bottle size changeover by adjusting guide rails, vibration channels, and bottle positioning systems.

Suitable for:

· Round bottles

· Square bottles

· PET bottles

· HDPE bottles

4. What is the production speed?

Production speed depends on:

· Product size

· Product shape

· Bottle quantity

· Machine model

Examples:

· 8-channel counter: up to 25–40 bottles/min

· 16-channel counter: up to 40–70 bottles/min

· 24/32-channel counter: higher speeds available

5. Can your machines work with gummies?

Yes.

We provide counting solutions specially designed for gummies and sticky products.

Our machines use:

· Anti-stick feeding systems

· Adjustable vibration control

· Intelligent counting sensors

6. Do you provide complete bottling lines?

Yes.

We provide complete automatic counting and bottling solutions including:

· Bottle unscrambler

· Electronic counting machine

· Desiccant inserter

· Capping machine

· Induction sealing machine

· Labeling machine

· Collection turntable

7. Are your machines CE certified?

Yes.

Most of our machines support CE certification and comply with international export standards.

Additional certifications can be discussed according to your market requirements.

8. What voltage do your machines support?

Standard power supply:

· AC 220V / 50-60Hz

We can also customize:

· 110V

· 380V

· 415V

· Different plug standards

According to your country requirements.

9. How long is the delivery time?

Normally:

· Single machine: 7–15 working days

· Complete production line: 20–30 working days

Delivery time may vary during peak seasons.

10. Do you provide installation and after-sales service?

Yes.

We provide:

· Operation manuals

· Installation videos

· Online technical support

· Remote troubleshooting

· Lifetime technical assistance

Engineers overseas service can also be arranged if needed.

11. Can the machine connect with our existing production line?

Yes.

Our machines support integration with existing packaging systems and conveyors.

We can customize:

· Conveyor height

· Signal connection

· Feeding direction

· Layout design

12. What materials are used for the machine?

Main machine material:

· SUS304 stainless steel

Product contact parts:

· SUS316 stainless steel (optional)

Machines comply with GMP-oriented pharmaceutical production requirements.

13. Do you support OEM or customized solutions?

Yes.

We support:

· OEM branding

· Customized machine size

· Customized hopper design

· Multi-language interface

· Special product handling solutions

14. Which countries have you exported to?

Our machines have been exported to:

· USA

· Canada

· Spain

· Germany

· Mexico

· Thailand

· Indonesia

· Middle East countries

· South America

And many other regions worldwide.

15. How can I get a quotation?

Please send us:

· Product photos

· Product size

· Bottle type

· Required speed

· Voltage requirement

Our engineers will recommend the most suitable solution for you.
