24C High-Speed Automatic Counting Machine for Tablets, Capsules & Small Parts

The Ry-AEC-24C High-Speed Automatic Counting Machine features 24 counting channels that deliver throughput of 10 to 80 bottles per minute, making it ideal for mid-to-high-volume pharmaceutical and nutraceutical bottling operations. This machine counts hard capsules (sizes 000–5#), soft gelatin capsules, pills, tablets, chewing gum, and other solid objects ranging from 5.5mm to 22mm in diameter. With no tooling required when switching between product types, the Ry-AEC-24C minimizes changeover time and maximizes production flexibility. All parts in contact with materials are constructed from superior SUS316 stainless steel, fully meeting GMP requirements.

Technical Specifications

• Model: Ry-AEC-24C
• Number of Channels: 24
• Applications: Hard capsules (000–5#), soft gelatin capsules, pills (diameter ≤20mm), chewing gum, tablets, other solid objects (diameter 5.5–22mm)
• Hopper Volume: 70L
• Capacity: 10–80 bottles/min
• Filling Quantity: 2–9999 pieces per bottle (adjustable)
• Bottle Size Range: Diameter 20–50mm, Height 40–180mm
• Conveyor Belt Width: 114mm
• Compressed Air: 0.6MPa, 4L/min
• Voltage: 220V 50Hz, single phase
• Power: 1kW
• Machine Weight: 560kg

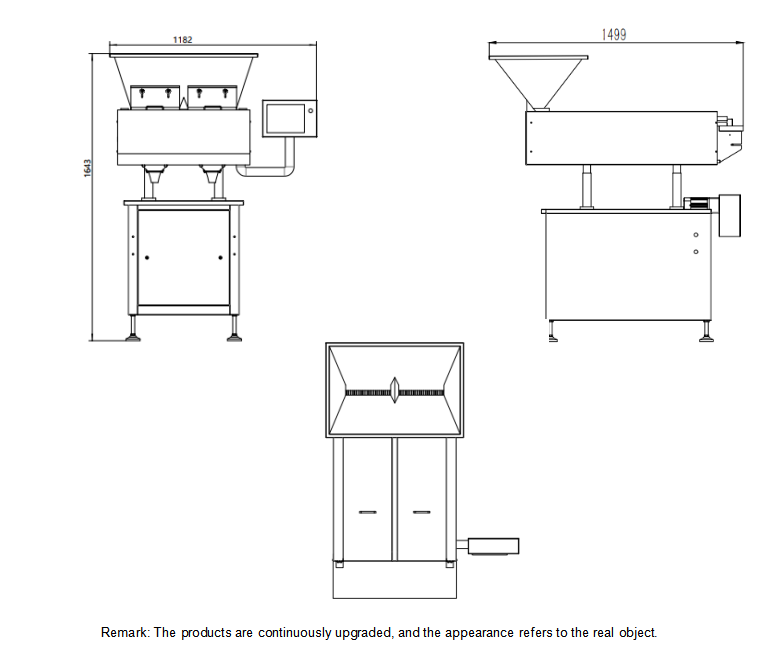

• Overall Dimensions (L×W×H): 1560×1530×1700mm

Core Features

• 3-Stage Adjustable Vibrating Platform: Each counting head is equipped with a three-stage adjustable vibrating system that controls capsule output speed, preventing blockages and ensuring smooth material flow across all 24 channels.
• Strong Product Compatibility: Counts tablets including special-shaped tablets, hard capsules, transparent and opaque soft capsules, and pills without requiring mold changes between product types.
• Vibration Blanking System: 24 channels vibrate and discharge materials evenly and smoothly, eliminating product damage during the counting process.
• Anti-Dust Sensor Technology: Proprietary anti-dust photoelectric sensor technology maintains stable, accurate counting performance even in high-dust production environments where powder-coated tablets and capsules are processed.
• High-Accuracy Counting: Photoelectric sensor technology enables precise capsule counting and detection in bulk, achieving up to 99.8% counting accuracy under normal production conditions.
• Intelligent Detection and Alarm: Multiple detection functions include no-bottle-no-count, self-diagnosis, and error alarms, preventing miscounts and protecting downstream equipment.
• Touch Screen Operation: Intuitive interface allows operators to set filling quantities, adjust vibration parameters, and monitor production status in real time.
• No Mold Change Required: Switching between different counting objects requires no tooling or mold replacement, reducing changeover time to minutes.

How It Works

The bottle blocking device on the conveyor belt halts the transferred bottle at the bottling position, where it waits for filling. Product materials fall into the counting device in an orderly manner through the vibration of the feeding corrugated plate. The 24-channel vibration system distributes materials evenly across all lanes. Photoelectric counting sensors detect and count each item as it passes through the channels, then the counted batch is loaded into the bottle at the bottling position. The filled bottle is released and moves downstream for capping, sealing, or labeling.

Applications

The Ry-AEC-24C serves pharmaceutical, nutraceutical, and food industries:

• Pharmaceutical: Tablets, capsules, soft gels, pills for prescription and OTC medications
• Nutraceutical: Vitamin tablets, supplement capsules, soft gel supplements
• Food: Chewing gum, candy pieces, small confectionery items
• Other: Small hardware parts, electronic components, beads, seeds

Complete Bottling Line Integration

The Ry-AEC-24C integrates with other equipment to form a complete automatic counting and bottling line:

1. Bottle unscrambler
2. Electronic counting machine (Ry-AEC-24C)
3. Desiccant inserter
4. Capping machine
5. Induction sealing machine
6. Labeling machine
7. Collection turntable

Conveyor height, signal connections, and feeding direction can be customized to match existing production line configurations.

Quality, Compliance, and Support

All product contact parts are SUS316 stainless steel, fully compliant with GMP pharmaceutical production requirements. The machine supports CE certification for international export. Each unit is factory-tested for counting accuracy, vibration stability, and continuous-run performance before shipment. Hangzhou Ruiyi Machinery Technology Co., Ltd. provides operation manuals, installation videos, online technical support, remote troubleshooting, and lifetime technical assistance. On-site engineer service is available for international installations. Standard delivery time is 7–15 working days for a single machine.
