Automatic Horizontal High-speed automatic pillow type packer for Food, Candy, and Bakery Packaging

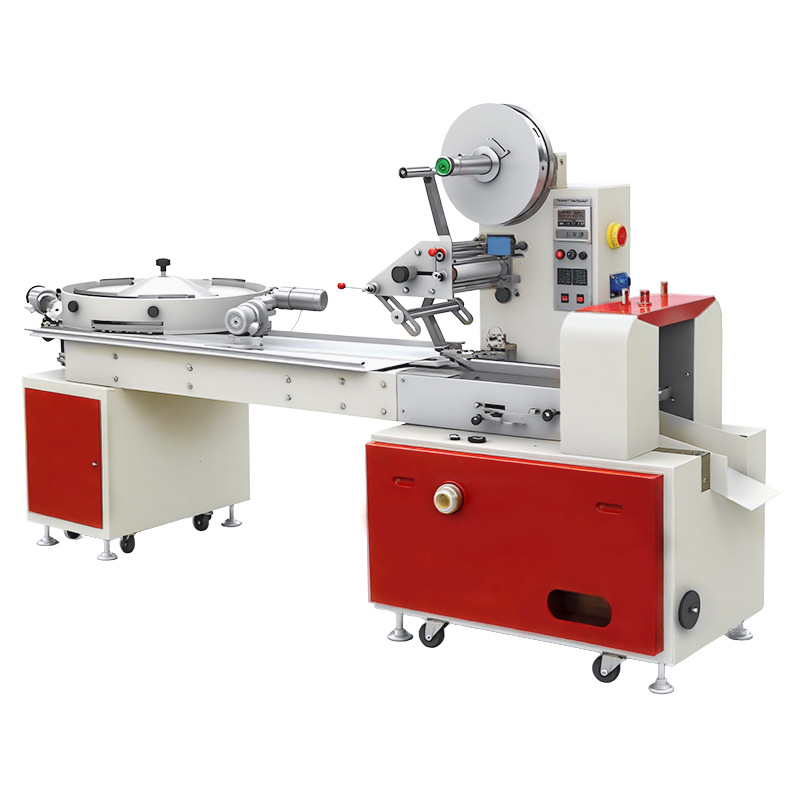

The Ry-80ZB-N Full-Automatic Pillow Type Packer is engineered for high-speed packaging of oblong, quadrate, round, oval, and shaped candies and baked goods. Capable of processing up to 800 pieces per minute, this horizontal packaging machine wraps individual products in pillow-type film packages with precise sealing and cutting. Manufactured by Hangzhou Ruiyi Machinery Technology Co., Ltd., the Ry-80ZB-N combines rapid computer programming with photoelectric tracing to deliver consistent package quality across long production runs.

Technical Specifications

• Model: Ry-80ZB-N
• Packing Speed: Up to 800 pieces/min
• Product Types: Oblong, quadrate, round, oval, and shaped items
• Packing Paper Length: 45–80mm
• Film Width: 80mm
• Total Power: 3.5kW
• Power Supply: 380V
• Machine Dimensions (L×W×H): 3000×1350×1450mm
• Machine Weight: 860kg

Core Features

• Rapid Computer Programming and Photoelectric Tracing: The control system automatically tracks film registration marks to ensure each package is cut at the correct position, minimizing waste from misaligned cuts.
• Frequency Control for Stable Operation: Variable frequency drive allows smooth speed adjustment without stopping the machine, enabling operators to match output rate to upstream feeding speeds.
• Reversible Candy Sorting Disc: An oversized sorting disc rotates reversibly to optimize the empty-package rejection rate, ensuring only properly positioned products enter the wrapping section.
• High-Speed Performance with Simple Operation: The machine delivers excellent overall performance with straightforward controls, reducing operator training requirements while maintaining high throughput.

How It Works

The packaging process follows four continuous stages. First, products are automatically delivered into the machine by the conveyor belt, where the feeding system ensures equal spacing between each item for continuous and accurate wrapping. Second, packaging film is unwound from the roll and passes through a forming device that folds it into a tubular shape around the products. A longitudinal sealing unit seals the overlapping edges, creating a continuous film tube. Third, the tubular film enters the cross-sealing unit, where sealing jaws seal both ends and simultaneously cut between products, producing individually wrapped packages. Finally, finished packages are discharged by the conveyor system and collected neatly. Optional date printers or coding machines can be integrated for batch and expiration date marking.

Applications

The Ry-80ZB-N is designed for food, candy, and bakery packaging applications:

• Confectionery: Hard candies, gummy candies, chocolate bars, lollipops
• Bakery: Cookies, biscuits, pastries, wafers, snack bars
• Food: Energy bars, protein bars, compressed food blocks, individual snack portions
• Other: Small hardware items, disposable items, household products in pillow-type packaging

Film and Material Compatibility

The machine accepts plastic film and composite film materials with a width of 80mm and packing paper lengths between 45mm and 80mm. This range accommodates most standard pillow-type packaging applications for small to medium-sized food and candy products. For non-standard product dimensions, the forming device and film specifications can be customized to meet specific requirements.

Quality and Compliance

The Ry-80ZB-N is constructed with food-grade materials and supports CE certification for international export. The machine complies with food safety standards for packaging equipment. Each unit undergoes functional testing before shipment, including speed calibration, sealing temperature verification, and cutting accuracy checks. The photoelectric tracing system is tested under continuous-run conditions to confirm reliable registration mark detection.

Maintenance and Support

Modular component design allows easy access for cleaning, maintenance, and part replacement. The frequency-controlled drive system reduces mechanical wear compared to fixed-speed machines, extending component service life. Hangzhou Ruiyi Machinery Technology Co., Ltd. provides operation manuals, installation videos, online technical support, and remote troubleshooting. On-site engineer service can be arranged for international installations. Standard delivery time is 7–15 working days for a single machine.
